CAPABILITIES
At Stollco, we are your one stop job shop source.
Our Team - Designers, CNC Machine Programmers, Tool and Die Makers/machinists, and CNC Machine Operators.
FIBER CUTTER
-
GAUGE
From 28 gauge (0.015”) to 1" thick (depending on material type)
-
LENGTH & WIDTH
60 inches wide by 120 inches long
-
CAPACITY
8000 watts
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum, Titanium, Copper, Brass and other exotic materials
-
MATERIAL THICKNESS
.015 inch to 1 inch
Up to 1” thick Mild Steel/Stainless Steel
Up to 3/4” thick Aluminum
Up to 3/8” thick Copper/Brass
The Fiber Laser Cutter is substantially faster than our CO2 Laser on thinner gauge material, and this relatively new addition can offer reduced costs and quicker turnaround times. The machine is a solid- state, monolithic design that produces single mode, high quality beams, ideal for narrow kerf and precision cutting.
CO2 LASER CUTTER
-
GAUGE
From 28 gauge (0.015”) to 1/2" thick (depending on material type)
-
LENGTH & WIDTH
60 inches wide by 120 inches long
-
CAPACITY
4000 watts
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum
-
MATERIAL THICKNESS
Up to 1/2" thick Mild Steel/Stainless Steel
Up to 3/8" thick Aluminum
Our laser cutters are multifunctional tools, capable of processing just about any imaginable geometrical shape (we have cut thousands of different profiles over the years). The superior edge quality produced allows for little to no post-production finishing of the parts.
TRUMPF TRUE BEND 7030
-
CAPACITY
11 gauge to 24 gauge capacity - 1/8 thickness
-
LENGTH & WIDTH
Up to 10 feet long
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum and other exotic materials.
-
SPECIALITY
Fully Automated

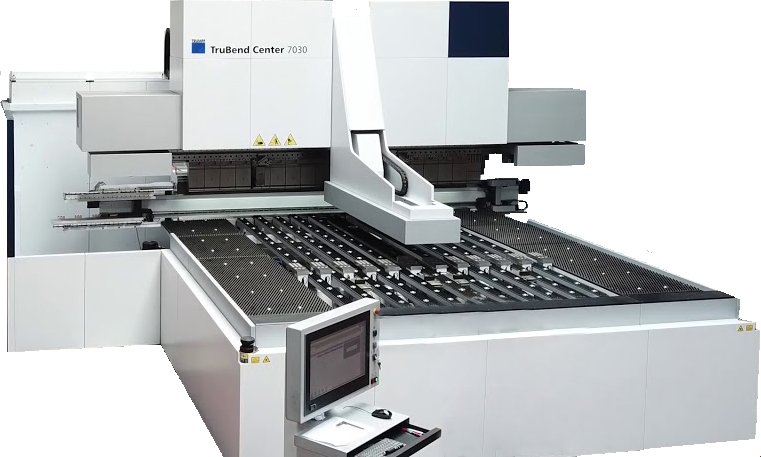

The Trumpf True Bend Center 7030 is a fully automated bending machine.
When it comes to complex bending job, our Trumpf bending machine is precise and efficient.
Designed for productivity, the TruBend Center 7030 contains the widest range of parts/tools that
will interchange automatically.
From complex design jobs to large-scale production jobs, it will fabricate components for an array
of industrial applications.
11 AXIS CNC FORMING
Trumpf Tru-Bend 5230
-
GAUGE
From 28 gauge (0.015”) to 1/2" thick
-
LENGTH & WIDTH
Up to 14 foot long (depending on tooling required)
-
CAPACITY
230 Tones
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum and other exotic Materials.
-
SPECIALITY
6 Axis CNC
Our Trumabend V series hydraulic CNC press brake is a flexible, efficient, and effective part bending machine. The unique die shifting feature, along with an intelligent 6-axis back-gauge, offers the best in precision metal forming. We produce simple bends, to complex multi-station forming.
In addition, we have three other press brakes, ranging from small to medium size, to quickly and accurately produce your formed parts.
CNC PUNCHING MACHINE
-
GAUGE
From 26 gauge (0.020”) to 3/16” (depending on material type)
-
LENGTH & WIDTH
60 inches wide to 180 inches long
-
CAPACITY
20 Tons
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum.
-
SPECIALITY
Blanking, Tapping, Countersinking, and limited Forming/Lance Forming operations.
The Trumatic TC5000R is the fastest and most productive punching machine in our industry. Its high productivity makes this machine an effective alternative to our laser cutters, and definitely is the go to production method for certain jobs.
EDM WIRE CUTTING
-
GAUGE
From 0.001” to 15”
-
LENGTH & WIDTH
44 inches wide (X) 30 inches deep (Y) 15 3/4 inches high (Z)
-
CAPACITY
3,300 lbs
-
MATERIAL
Aluminum, Copper, Steel, Stainless Steel, etc. – anything that will conduct electricity
The main use for Wire EDM ("Electrical Discharge Machining") cutters is to cut profiles that are too intricate, too thick, or involve tapers, factors that can make conventional machining or laser cutting impossible.
We predominantly use our EDM machine to produce punches, tools, and dies, with hardened metals that are too difficult to machine. This machine is as accurate as our laser cutters.
METAL STAMPING
-
CAPACITY
Wide range of presses from 5 tons to 400 tons
-
LENGTH & WIDTH
Size – up to approximately 40” wide coil material
-
MATERIAL
Mild Steel, Stainless Steel, Galvanized Steel, Satin Coat, Aluminum and other exotic Materials
Stollco has both mechanical and hydraulic presses, utilizing the best manufacturing techniques.
TOOL & DIE MAKING
-
Stollco Industries has over 45 years of experience in designing and fabricating dies. We have produced dies and custom machines for many industries, including, but not limited to, the following: window industry, electrical industry, and construction hardware industry.
We also have the ability to produce your parts in our press shop, once the die work has been completed.
